Specifications:

Input voltage:3V-10V
Single H-Bridge output current:1.5A(It can drive two DC motor)

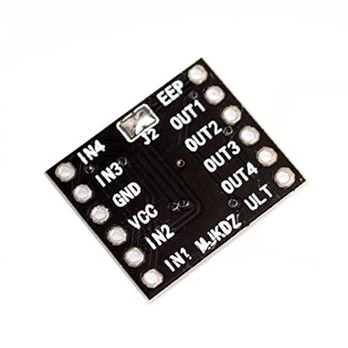

Features:

1. ULT PIN:mode set.Low level is sleep mode
2. OUT1,OUT2:1-channel H-bridge controlled by IN1/IN2
3. OUT3,OUT4:2-channel H-bridge controlled by IN3/IN4
4. EEP PIN:Output protection.Default no need to connect.
5. VCC:3-10V
6. GND

Package includes:

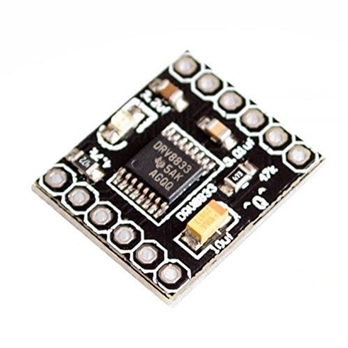

1 X  DRV8833 2Channel DC Motor Driver Module
